Real-Time RF Capture & Playback System

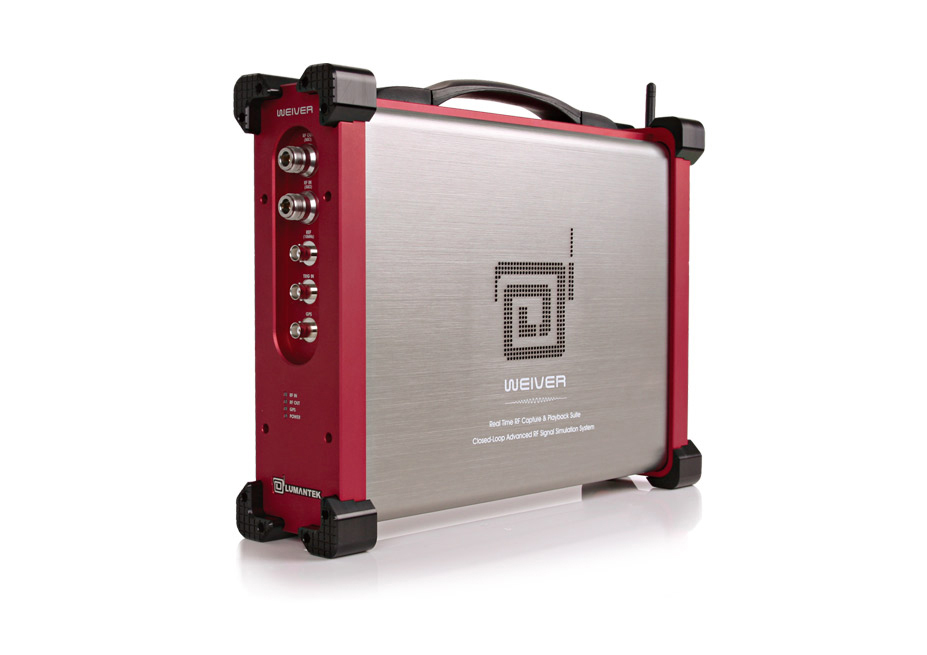

Weiver is a must-have instrument for RF engineers, device manufacturers and terrestrial broadcasters, alike, where field testing is mission critical. Weiver records in real-time and regenerates RF signals covering the bandwidth range of 8M and/or 24M in almost any environment, in the lab or in the real world.

Capture worldwide broadcasting standards of DTV (ATSC, DVB-T/H, DVB-C, DMB, CMMB, DTMB, ISDB-T/B, OpenCable, and ATSC-M/H), ATV (NTSC, PAL), FM Radio, RDS and TMC. Because Weiver is shipped with both frequencies pre-installed it equates to hassle-free, one-click SDR upgrades without costly downtime due to unnecessary trips to the factory.

Hassel free Mobility

Just 5Kg, the easy travel has become important for Field RF captue work at anywhere
Use Only 50W Power

Just 50 Watt, lower power consumtion, and possibly plug directly into your vehicles's cigarette lighter.

Synchronize multiple WEIVERs for Diversity test & Cross-band linkage!: By uisng external H/W Switch box ( Model : WIEEVR syncer option ) can sycrronize two WEIEVRS via Trigger and 10 Mhz clock.

High Speed SSD Storage(Built-in)

Built in SSD, and also extenal SSD disk ( option ) is avaliable, Read/Wrrite Speed 200 MB
Wireless Operation

WIVER has built in WiFi modem, and your laptop ( I-PAD ) can access WIEVR platform via AD-Hoc
Signal Tracer

WEIEVR has built in GPS, and WEIVER signal tracer is an shown GPS location, RF power level, real time traffice, speed information based on Google map

RF Triggering & Recording

WEIVER can trigger full sequence of the event ( include before 3 min and after 3 min of the event triggering
iPAD Control

Light Version of WIEVR apps is avaliable for iPAD
External SSD

WEIVER can record or directly playback from external SSD pack through e-SATA

product_view

Ordering Information

Designation	Quoto Code

Base Unit
RF recorder and playback, 8M bandwidth, 256Gb SSD	LMTW1-MF
RF recorder and playback, 8M bandwidth, 512Gb SSD	LMTW1-MFU
Accessories
Power Supply Module, 100-240V
Auto DC power regulated adpator (Car Cigar jack)
WiFi Antenna
GPS Module, external antenna
Additional Cable for connecting control device
The WEIVER Tracer (Graphical Display of GPS Position and Route data)
I/Q File converter
Option for Bandwidth Extensions
24M bandwidth extension	LMTW1-BWU
Options for External Memory packs
256 Gbyte SSD Memory Pack, up to 300 Mbyte/s for the WEIVER	LMTW1-EMP
512 Gbyte SSD Memory Pack, up to 300 Mbyte/s for the WEIVER	LMTW1-EMPU
Options for Drive test
The WEIVER Syncer (external trigger for multiple units)	LMTW1-EX
Additional cables for the test

Service options	Quoto Code

Extended Warranty with calibration coverage, one year	LMTKWEC1W
Extended Warranty with calibration coverage, two year	LMTKWEC2W
Extended Warranty with calibration coverage, three year	LMTKWEC3W
Extended Warranty with calibration coverage, four year	LMTKWEC4W

※ Important Notice: This price table, including all attachments, may contain highly confidential, sensitive, legally privileged, as we have signed on NDA. Any review, retransmission, dissemination or other use of this information by persons or entities other than the intended recipient is prohibited.

LUMANTEK maintains a price table of product improvement and reserve the right to modify the specifications without notice

Capture Mode

Frequency

Frequency band	30MHz to 1.015GHz
Real-time bandwidth	8M, 24M
Frequency resolution	1Hz min
Resolution bandwidth	8M (9.76KHz, 4.88KHz, 2.44KHz, 1.22KHz, 610.35Hz) 24M (29.29KHz, 14.64KHz, 7.32KHz, 3.66KHz, 1.83KHz)
Temperature stability	±1PPM
Initial achievable accuracy	±2PPM
Aging (PER year)	±1PPM

Spectral Purity

Phase Noise@1KHz offset, 1GHz	≤ -80dBc/Hz
Phase Noise@10KHz offset, 1GHz	≤ -95dBc/Hz
Phase Noise@100KHz offset, 1GHz	≤ -100dBc/Hz

Noise density

< -160 dBm/Hz

Amplitude

Input level accuracy	±1dB
Input dynamic range (CW tone)	0 ~ -130dBm
Gain range	-15 ~ +45dB
Input level resolution	0.01dB
Max. DC input	±50 VDC

RF in

RF input port

50ohm, N type female, DC-coupled

IF band

Resolution	16-Bit
Sampling rate	60 MS/s
Frequency	75 MHz

Storage

Storage (Default)	256 GB SSD
256 GB Storage time ( BW 8M )	100 minutes
256 GB Storage time ( BW 24M )	30 minutes
Storage (OPT)	256 GB External, e-SATA

Calibration

1 year

Environment

Operating temperature	0 to +50℃
Relative humidity	90%
Storage temperature	-20 to +70℃

Play Mode

Frequency

Frequency band	30MHz to 1.015GHz
Real time bandwidth	8M, 24M
Frequency resolution	1Hz min.
Temperature stability	±1PPM
Initial achievable accuracy	±2PPM
Aging (PER year)	±1PPM

Spectral Purity

Phase Noise@1KHz offset, 1GHz	≤ -80dBc/Hz
Phase Noise@10KHz offset, 1GHz	≤ -98dBc/Hz
Phase Noise@100KHz offset, 1GHz	≤ -100dBc/Hz

Spurious Responses

2nd Harmonic	≤ -50dBc
3rd Harmonic	≤ -60dBc
LO leakage	≤-90dBm

RF Output Characteristics

Gain range	-30 ~ +30dBm (variable; depends on input power)
Amplitude resolution	0.1dB step (Min.)
Amplitude accuracy	±1dB

RF Out

RF output port

50ohm, N type female, DC-coupled

Overload Protection on RF Output

Max. reverse RF power	1 W (Max.)
DC Input	±50 VDC (Max.)

Calibration

1 year

Environment

Operating temperature	0 to +50℃
Relative humidity	90%
Storage temperature	-20 to +70℃

Power

Input power	+12 VDC

Mechanical

Dimensions	(L) 370mm x (W) 284mm x (H) 94mm
Weight	approx. 5 kg
